無限分類是我們項目中經常使用的功能， 這里基于ssm(Spring SpringMVC MyBatis)整合一個完善的后臺分享給大家使用

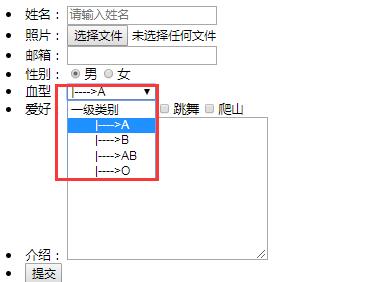

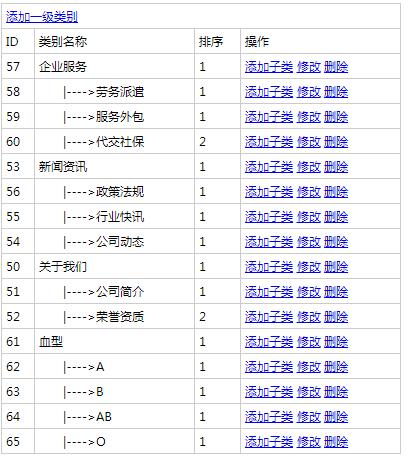

效果如下：（添加，刪除，修改，移動類別到任意目錄下等功能）
一. 創建表
CREATE TABLE `sorts` ( `id` int(10) unsigned NOT NULL AUTO_INCREMENT, `sortName` varchar(50) NOT NULL COMMENT '類別名稱', `parentId` int(11) NOT NULL DEFAULT '0' COMMENT '父級id', `sortPath` varchar(150) NOT NULL COMMENT '父級到當前類別的所有路徑且多一個逗號(模糊搜索有用)', `levels` int(11) NOT NULL DEFAULT '1' COMMENT '層級, 默認1, 表示第一級', `orders` int(11) NOT NULL DEFAULT '1' COMMENT '排序', PRIMARY KEY (`id`) ) ENGINE=MyISAM AUTO_INCREMENT=66 DEFAULT CHARSET=utf8;
二. pojo 類
package com.pojo;
public class Sorts {
private int id;
private String sortName;
private int parentId;
private String sortPath;
private int levels;
private int orders;
private String space; //列表查詢時 前面的 間隔
public int getId() {
省略setter and getter
}三. Dao類
package com.dao;
import com.pojo.Sorts;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;
import java.util.ArrayList;
import java.util.HashMap;
@Repository("sortsDao")
@Mapper
public interface SortsDao {
public int addSorts(Sorts sorts); //返回添加信息的主鍵
public Sorts selectBySortNameAndParendId(Sorts sorts);
//查詢 當前父類下 是否已經有相同的類別
public Sorts selectSortsById(Integer id);
public int updateSorts(Sorts sorts);
public int updateSortsBySortNameOrdersId(Sorts sorts);
public ArrayList<Sorts> selectByParentId(Integer id);
//得到當前類別id下的所有子類
public Sorts selectSortsByParentIdSortNameId(Sorts sorts);
//查詢非當前id下，同一個父類下是否有相同的類別
public int updateAllChildSorts(HashMap<String,Object> hm);
//更新所有的修改類別的子類
public int updateAllChildSortsLevels(HashMap<String,Object> hm);
//刪除當類類別及所有的子類
public int deleteAllSortsById(Integer id);
}四. mapper文件
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zhuangzi.ssm0925.dao.SortsDao">
<!-- 添加一個類別 -->
<insert id="addSorts" parameterType="sorts" useGeneratedKeys="true" keyProperty="id">
insert into sorts (sortName,parentId,sortPath,levels,orders) values
(#{sortName},#{parentId},#{sortPath},#{levels},#{orders})
</insert>
<!-- 查詢當前父類下是否存在相同的類別名稱-->
<select id="selectBySortNameAndParendId" parameterType="sorts" resultType="sorts" >
select * from sorts where parentId = #{parentId} and sortName = #{sortName}
</select>
<!-- 查詢當前父類下不是原來的ID下是否存在相同的類別名稱-->
<select id="selectSortsByParentIdSortNameId" parameterType="sorts" resultType="sorts" >
select * from sorts where parentId = #{parentId} and sortName = #{sortName} and id <> #{id}
</select>
<!-- 根據ID查詢類別-->
<select id="selectSortsById" parameterType="Integer" resultType="sorts" >
select * from sorts where id = #{id}
</select>
<!-- 得到當前類別下面所有的子類-->
<select id="selectByParentId" parameterType="Integer" resultType="sorts">
select * from sorts where parentId = #{id} order by orders asc
</select>
<!-- 修改類別 -->
<update id="updateSorts" parameterType="sorts">
update sorts set sortName = #{sortName},
parentId = #{parentId},
sortPath = #{sortPath},
levels = #{levels},
orders = #{orders}
where id = #{id}
</update>
<!-- 父id不變, 則parentid, levels都不需要修改-->
<update id="updateSortsBySortNameOrdersId" parameterType="sorts">
update sorts set sortName = #{sortName},
orders = #{orders}
where id = #{id}
</update>
<update id="updateAllChildSorts" parameterType="Map">
update sorts set sortPath = replace(sortPath,#{oldSortPath},#{newSortPath}) where
sortPath like concat('%',#{oldSortPath},'%') and id <> #{id}
</update>
<!-- //所有的 逗號 的個數 減一 即levels-->
<update id="updateAllChildSortsLevels" parameterType="Map">
update sorts set levels = length(sortPath)- length(replace(sortPath,',','')) - 1 where
sortPath like concat('%',#{newSortPath},'%') and id <> #{id}
</update>
<!-- 刪除當類類別及所有的子類-->
<delete id="deleteAllSortsById" parameterType="Integer">
delete from sorts where sortPath like concat ('%',',',#{id},',','%')
</delete>
</mapper>五. service接口
package com.service;
import com.pojo.Sorts;
import java.util.ArrayList;
public interface SortsService {
public String addSorts(Sorts sorts);
public ArrayList<Sorts> getChildren(int parentId, String space, ArrayList<Sorts> arr);
public StringBuffer selectTrees(int pid,String selectName,int currentId);
public Sorts selectSortsById(Integer id);
public String updateSorts(Sorts sorts);
public String deleteAllSortsById(Integer id);
}六. service實現類
package com.zhuangzi.ssm0925.service;
import com.zhuangzi.ssm0925.dao.SortsDao;
import com.zhuangzi.ssm0925.entity.Sorts;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.ArrayList;
import java.util.HashMap;
@Service("sortsService")
public class SortsServiceImpl implements SortsService{
public static int initLevel = 0;
@Autowired
private SortsDao sortsDao;
public static ArrayList<Sorts> all; //存儲所有的查詢子類數據
@Override
public String addSorts(Sorts sorts) {
//判斷類名不能為空
if(sorts.getSortName().equals("")) {
return "<script>alert('類別名稱不能為空');history.back();</script>";
}
//判斷同一級下不能重復的名稱
if(sortsDao.selectBySortNameAndParendId(sorts) != null){
return "<script>alert('父類下已存在相同類別!!!');history.back();</script>";
}
//設置level, sortpath 信息 begin
sorts.setLevels(1);
sorts.setSortPath("0,");
if(sorts.getParentId() != 0){
//最頂級時使用默認設置值， 否則根據父級來決定
Sorts getSorts = sortsDao.selectSortsById(sorts.getParentId());
sorts.setLevels(getSorts.getLevels() + 1);
sorts.setSortPath(getSorts.getSortPath());
//暫時為父級sortPath, 當添加后， 再更新，將當前的id鏈接上
}
//將信息添加到數據庫sorts
sortsDao.addSorts(sorts); //sorts中會更新為新增加的id主鍵
//更新sortPath 到數據庫
sorts.setSortPath(sorts.getSortPath() + sorts.getId() + ",");
sortsDao.updateSorts(sorts);//
return "<script>alert('添加成功');location.href='/admin/sorts/list';</script>";
}
//parentId: 父類 ID, 查詢當前類別下的所有子類
//space : // 類別前面的空隔
@Override
public ArrayList<Sorts> getChildren(int parentId, String space, ArrayList<Sorts> arr){
if(arr == null){
//第一次查詢
System.out.println(parentId);
arr = sortsDao.selectByParentId(parentId);
initLevel = arr.get(0).getLevels();
all = new ArrayList<>(); //第一次時， 初始化， 避免刷新調用重新添加信息
}
if(arr != null){
for(Sorts sorts : arr){
//根據級別不一樣, 在前面加上相應的分隔符
int levels = sorts.getLevels();
if(levels == initLevel){
sorts.setSpace("");
}
else if(levels == initLevel + 1){
space = " |---->";
sorts.setSpace(space);
}
else{
sorts.setSpace(space);
}
all.add(sorts); //將所有的信息都加到all里， 并增加一個space字段
parentId = sorts.getId();
ArrayList<Sorts> arr_child = sortsDao.selectByParentId(parentId);
if(arr_child != null){
getChildren(parentId," |" + space,arr_child);
}
}
}
return all;
}
//得到無限分類的select下拉列表
//pid : 父id
//selectName select的名字
//currenId : 被選擇的id, 沒有的話,傳遞0
@Override
public StringBuffer selectTrees(int pid,int currentId){
StringBuffer sBuffer = new StringBuffer();
ArrayList<Sorts> results = getChildren(pid,"",null);
if(results != null){
for(Sorts sorts : results){
int id = sorts.getId();
if( id == currentId){
sBuffer.append("<option value='"+id+"' style='background:#E20A0A; color:#fff;' selected>"+
sorts.getSpace() + sorts.getSortName() + "</option> \n");
}
else{
sBuffer.append("<option value='"+id+"'>"+ sorts.getSpace() + sorts.getSortName() + "</option> \n");
}
}
}
return sBuffer;
}
@Override
public Sorts selectSortsById(Integer id) {
return sortsDao.selectSortsById(id);
}
@Override
public String updateSorts(Sorts sorts) {
//判斷類名不能為空
if(sorts.getSortName().equals("")) {
return "<script>alert('類別名稱不能為空');history.back();</script>";
}
//根據id得到原來的信息
Sorts oldSorts = sortsDao.selectSortsById(sorts.getId());
int oldPid = oldSorts.getParentId(); //原父id
String oldSortPath = oldSorts.getSortPath();
//判斷類別名稱是否重復
Sorts exitSorts = sortsDao.selectSortsByParentIdSortNameId(sorts);
if(exitSorts != null){
return "<script>alert('類別已經存在,請更換類別名稱');history.back();</script>";
}
if(oldPid == sorts.getParentId()){
//父id不變, 則parentid, level都不需要修改
sortsDao.updateSortsBySortNameOrdersId(sorts);
}
else if(sorts.getParentId() == 0){
//移動到一級類別
sorts.setSortPath("0," + sorts.getId() + ",");
sorts.setLevels(1);
//更新當前類別信息
sortsDao.updateSorts(sorts);
//更新所有的修改類別的子類sortPath
HashMap<String,Object> hm = new HashMap<>();
hm.put("oldSortPath",oldSortPath);
hm.put("newSortPath",sorts.getSortPath());
hm.put("id",sorts.getId());
sortsDao.updateAllChildSorts(hm);
//更新所有子類的層級
sortsDao.updateAllChildSortsLevels(hm);
}
else{
//判斷是否移到到了子類另， 這樣是不允許的， 中間會斷層
//得到當前父類的path
Sorts parentSorts = sortsDao.selectSortsById(sorts.getParentId());
String parentSortPath = parentSorts.getSortPath();
if(parentSortPath.indexOf(oldSortPath) >= 0){
return "<script>alert('類別不能選擇為原父類的子類');history.back();</script>";
}
else{
//父類更新到上一級或者其它的類別下, 那么該類別下所有的子類都需要更新父級sortpath
//新的sortpath
String newSortPath = parentSortPath + sorts.getId() + ",";
int newLevel = parentSorts.getLevels() + 1;
sorts.setSortPath(newSortPath);
sorts.setLevels(newLevel);
sortsDao.updateSorts(sorts);
//更新所有的修改類別的子類
//更新所有的修改類別的子類sortPath
HashMap<String,Object> hm = new HashMap<>();
hm.put("oldSortPath",oldSortPath);
hm.put("newSortPath",sorts.getSortPath());
hm.put("id",sorts.getId());
sortsDao.updateAllChildSorts(hm);
//更新所有子類的層級
sortsDao.updateAllChildSortsLevels(hm);
}
}
return "<script>alert('修改成功');location.href='/admin/sorts/list';</script>";
}
//刪除所有的子類
@Override
public String deleteAllSortsById(Integer id) {
sortsDao.deleteAllSortsById(id);
return "<script>alert('刪除成功');location.href='/admin/sorts/list';</script>";
}
}七. 類別控制器
package controller;
import pojo.Sorts;
import service.SortsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.ArrayList;
@Controller
public class SortsController {
@Autowired
@Qualifier("sortsService")
private SortsService sortsService;
@GetMapping(value = "/admin/sorts/add")
public String add(@RequestParam(defaultValue = "0") Integer parentId,Model model){
model.addAttribute("selectTrees",sortsService.selectTrees(0,"parentId",parentId));
return "admin/sorts/add";
}
@PostMapping(value = "/admin/sorts/addSave")
public void addSave(Sorts sorts, HttpServletResponse response) throws IOException {
response.setContentType("text/html;charset=utf-8");
PrintWriter out = response.getWriter();
out.println(sortsService.addSorts(sorts));
}
@GetMapping(value = "/admin/sorts/list")
public String list(Model model){
ArrayList<Sorts> all = sortsService.getChildren(0,"",null);
model.addAttribute("all",all);
return "admin/sorts/list";
}
@GetMapping(value = "/admin/sorts/update")
public String update(@RequestParam(defaultValue = "0") Integer id,Model model){
Sorts sorts = sortsService.selectSortsById(id);
model.addAttribute("sorts",sorts);
model.addAttribute("selectTrees",sortsService.selectTrees(0,"parentId",sorts.getParentId()));
return "admin/sorts/update";
}
@PostMapping(value = "/admin/sorts/updateSave")
public void updateSave(Sorts sorts, HttpServletResponse response) throws IOException{
response.setContentType("text/html;charset=utf-8");
PrintWriter out = response.getWriter();
out.println(sortsService.updateSorts(sorts));
}
@GetMapping(value = "/admin/sorts/del")
public void del(@RequestParam(defaultValue = "0") Integer id, HttpServletResponse response) throws IOException{
response.setContentType("text/html;charset=utf-8");
PrintWriter out = response.getWriter();
out.println(sortsService.deleteAllSortsById(id));
}
}八. 控制器調用類
package com.controller;
import com.pojo.Student;
import com.service.SortsService;
import com.service.StudentService;
import com.service.StudentServiceImpl;
import javafx.scene.chart.ValueAxis;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import java.io.IOException;
import java.util.ArrayList;
@Controller
public class StudentController {
@Autowired
@Qualifier("sortsService")
private SortsService sortsService;
@Autowired
@Qualifier("studentService")
private StudentService studentService;
@GetMapping(value = "/admin/studentAdd")
public String studentAdd(Model model){
model.addAttribute("blood", sortsService.selectTrees(61,"blood",62));
return "admin/student/add";
}
@PostMapping(value = "/admin/studentAddSave")
@ResponseBody
public int studentAddSave(Student student) throws IOException {
return studentService.addStudent(student);
}
//顯示學生信息
@GetMapping(value = "/admin/studentList")
public String studentList(Student student, Model model){
ArrayList list = studentService.studentList(student);
model.addAttribute("list",list);
return "admin/student/list";
}
}
九. 其它類調用下拉信息
@GetMapping(value = "/admin/studentAdd")
public String studentAdd(Model model){
model.addAttribute("blood", sortsService.selectTrees(61,62));
return "admin/student/add";
}JSP頁面：
顯示調用效果：
請把相應的dao, service, controller, mapper及視圖html文件放到自己的相應
基于Thymeleaf
